Mastering Opus Tower Modeling with Rhino and Grasshopper

Zaha Hadid's Opus Tower in Dubai is an architectural marvel known for its curved, elongated shape reminiscent of a dancer. Opus Tower modeling is no easy feat. In this tutorial, we learn how to model the exterior of the tower in just over an hour using Rhino and Grasshopper.

Overview of the Modeling Process

We only had publicly available reference images of Opus Tower to work from. With no precise measurements to go off of, it was an exercise in quickly approximating the building's unique shape.

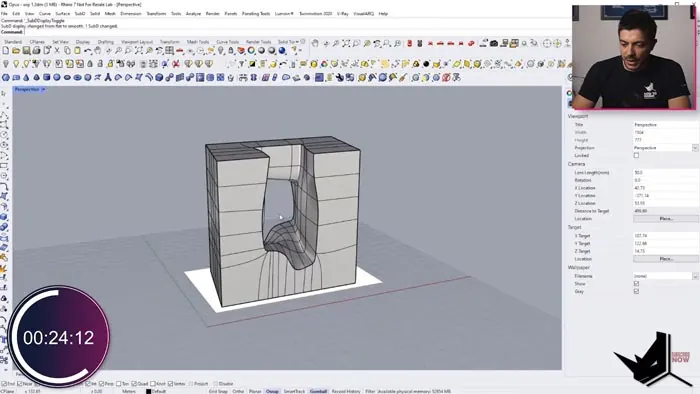

We started by creating a simple SubD box in Rhino that roughly matched the size and proportions of Opus Tower. After inserting and deleting some edges, we used the Bridge command to connect the SubD faces and rounded out the overall form.

Most of the time was spent carefully manipulating edges to create the signature curved fillets and tapering shape of Opus Tower. We compared our work to reference images to ensure accuracy. The intricacies of the corners and edges took precision and multiple iterations.

Once the SubD model was complete, we extracted and separated the surfaces to bring into Grasshopper. Here, the goal was to create clean seamless edges between the tower's different sides.

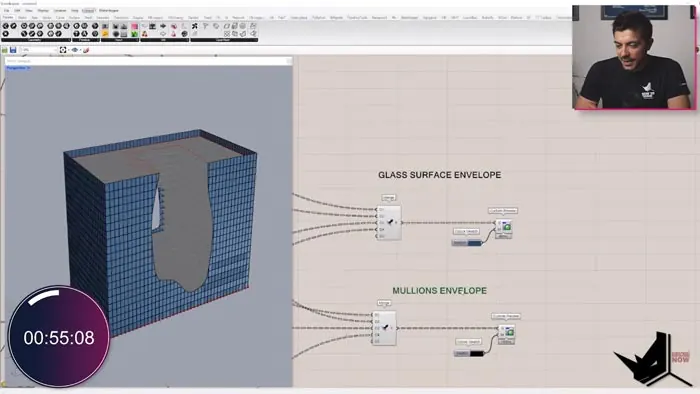

Opus Tower Modeling in Grasshopper

In Grasshopper, each side of the tower became an individual Brep. By taking just the edges, we were able to generate clean surfaces unbroken by messy SubD topology.

The key steps included:

• Creating horizontal and vertical contour divisions
• Intersecting division planes to generate panels
• Offsetting panels to create thickness
• Applying thickness to interior and exterior surfaces

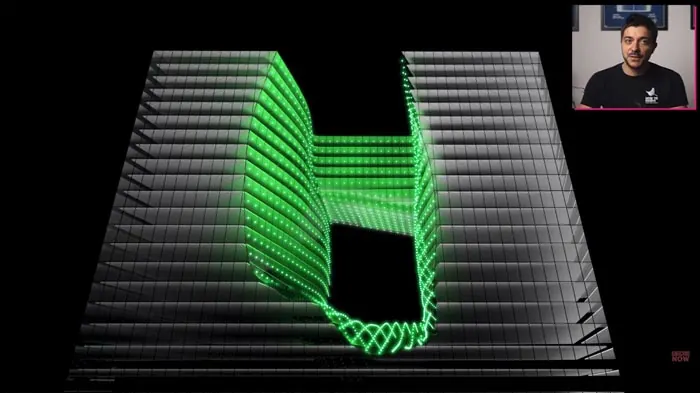

This process was repeated for each side of the Opus Tower. The result is a modular panel system with clean intersections matching the original design intent.

In under two hours, we were able to recreate Opus Tower's distinctive flowing shape. The proof of concept shows how powerful Rhino and Grasshopper can be for quickly mocking up complex architectural forms.

Why Accurate Architectural Models Are Important

Creating accurate 3D models of iconic buildings like Opus Tower serves many purposes:

• Visualization - Quality models allow architects to visualize a design and sell it to clients.
• Fabrication - Precise models can be used to manufacture building components like curtain walls.
• Education - Analyzing models helps students understand key design principles.
• Preservation - Models are important records to document architectural landmarks.

With Rhino and Grasshopper's flexibility, even the most unique buildings can be recreated digitally for these applications and more.

Tips for Modeling Complex Architecture

Projects such as Opus Tower modeling are no simple task. Here are some tips for tackling complex architectural modeling projects:

• Start with the overall form before focusing on the details
• Use reference photos for accuracy
• Work methodically and check as you model
• Exploit Grasshopper's ability to create clean geometry
• Take advantage of attractors and other algorithms if needed
• Don't be afraid to iterate and tweak until forms are precise

Proper planning, precision, and efficiency in Rhino and Grasshopper are key to delivering accurate models on tight deadlines.

More Rhino and Grasshopper Tutorials

If you found this case study interesting, be sure to check out more of our in-depth Rhino and Grasshopper tutorials covering architectural modeling techniques on our Patreon page.

We offer many more examples of dissecting complex definitions to build your skills. Pro members gain access to even more exclusive content and project files.

Opus Tower Modeling in Rhino and Grasshopper demonstrates the power these tools provide for rapid form finding and modeling. While modeling such a building in an hour is quite a feat, the fundamental techniques can help tackle all kinds of modeling challenges.
